GGE-20FT CATV & SAT IF Mini Optical Transmitter

GGE-20FT CATV & SAT IF Mini Optical Transmitter

คำอธิบาย

neral Description                                                                            123

GGE-20FT-1310, GGE-20FT-1550

GGE-20FT series optical transmitter, adopt high linearity DFB laser, modulated directly, It can transmit 45-2600MHz digital TV.

Optical operating wavelength is optical as 1310nm or 1550nm. 1550nm optical transmitter, ITU standard wavelength can be selected, suitable for DWDM to realize network-upgrading and capability-expansion. Meanwhile, add EDFA can amplify the optical power, compatible with any FTTx PON technology.



Performance Characteristics

l Smart digital display & control monitor system, simplified operation.

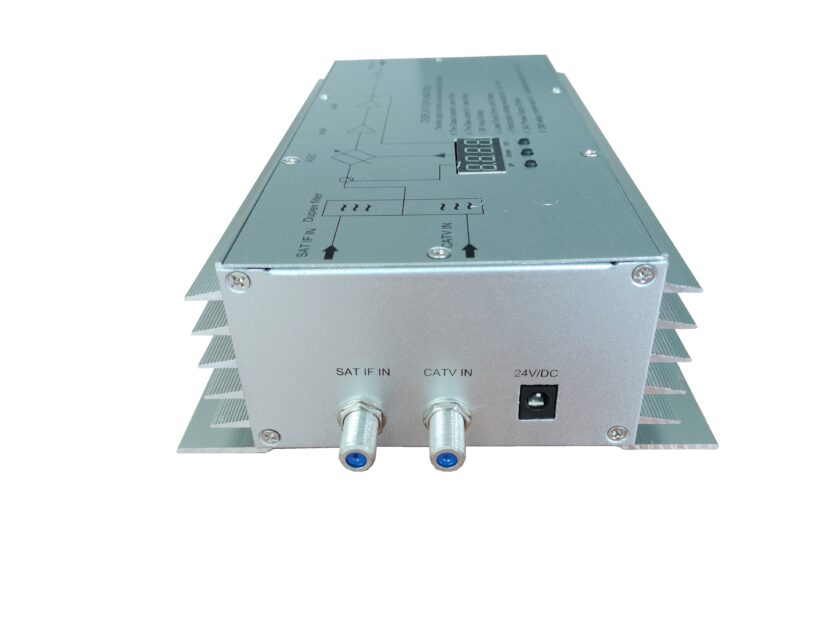

l Combined RF in port or separate CATV/SAT IF RF in port can be customized.

l High band wide 47-2600MHz.

l Suitable for digital TV and satellite TV application.

l 1310nm/1550nm optical output power from 2~10mW optional.

l 1550nm Tx can be amplified by EDFA, YEDFA to cover large scaled FTTH.

l Alumininum casing, good heat dissipation and performance.

l Compatible with any FTTx Pon technplogy.

Application、

echnical Specification



Item

GGE-20FT-1310/GGE-20FT-1550

Optical

Wavelength (nm) 1300±10 or 1550±20
Wavelength stability (pm/℃)

-1~0

SMS (dB)

35

Optical output power (mW)

2~10

Connector type

SC/APC or FC/APC

CATV

Frequency range (MHz)

47~865

CNR (dB)

≥51

Flatness (dB)

±0.75

C/CTB (dB)

≥65

C/CSO (dB)

≥65

Output Impedance(Ω)

75

Output return Impedance(dB)

>16

Input range (dBμv)

15~25 (AGC)

SAT IF

Frequency Range(Mhz)

950~2600

IF Output Power(dBm)

-40~-25

Flatness(dB)

±1.50

CNR(dB)

29

CSO(dB)

-36

CTB(dB)

-36

To LNB voltage(V)

13/18

To LNB Max. Current(mA)

300

General Parameter

Power Voltage(VDC)

24 (DC Adaptor)

External Solar Battery Panel

29~36VDC 120W(Battery)

Charger Socket

24VDC Charger

Power consumption(A)

0.5

Size(L*H*W)

210*150*60

Package

1piece/Box   10pcs/Ctn.

Gross Weight(Kg)

14.5/Ctn

Ctn. Dimension(cm)

53*37.5*29.2
